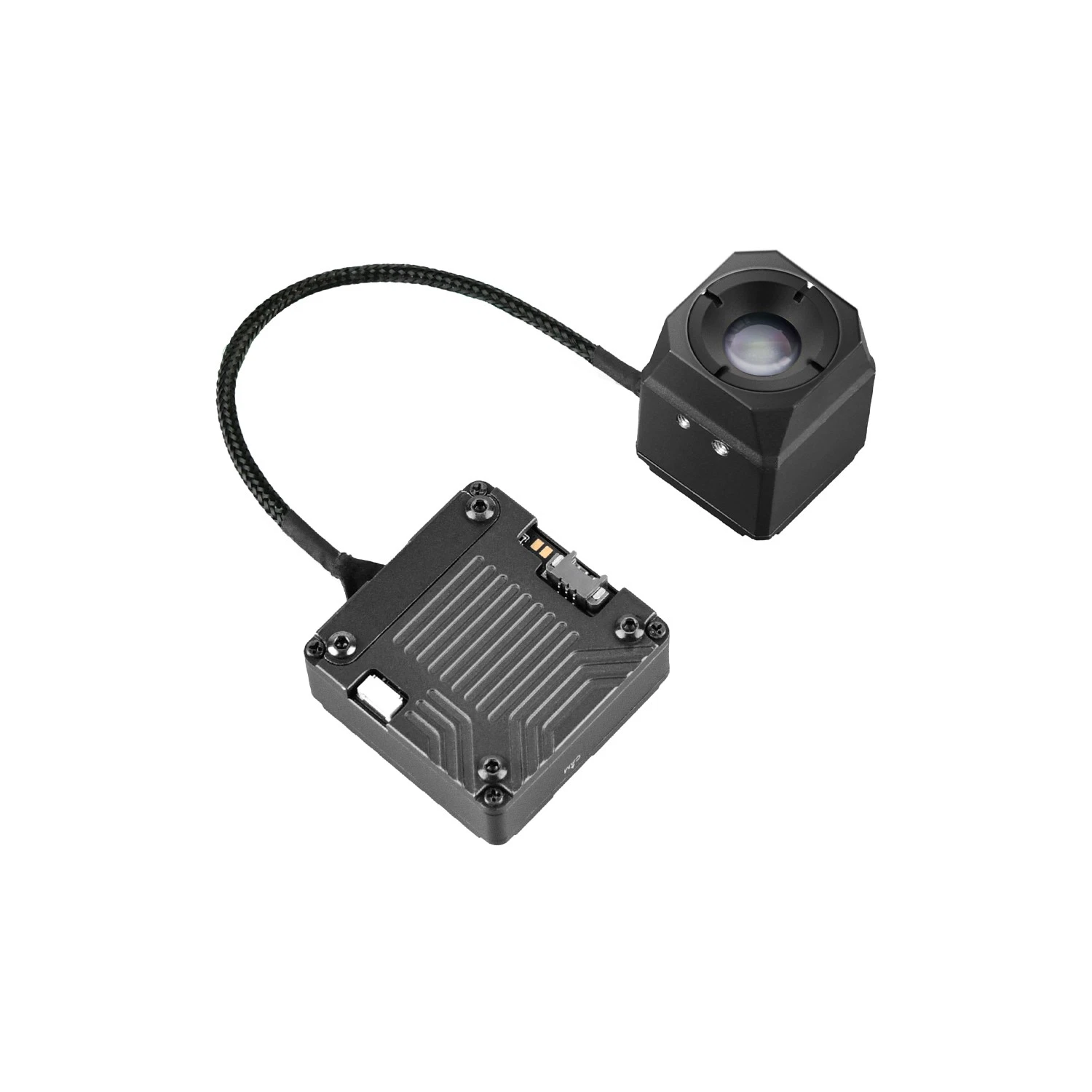

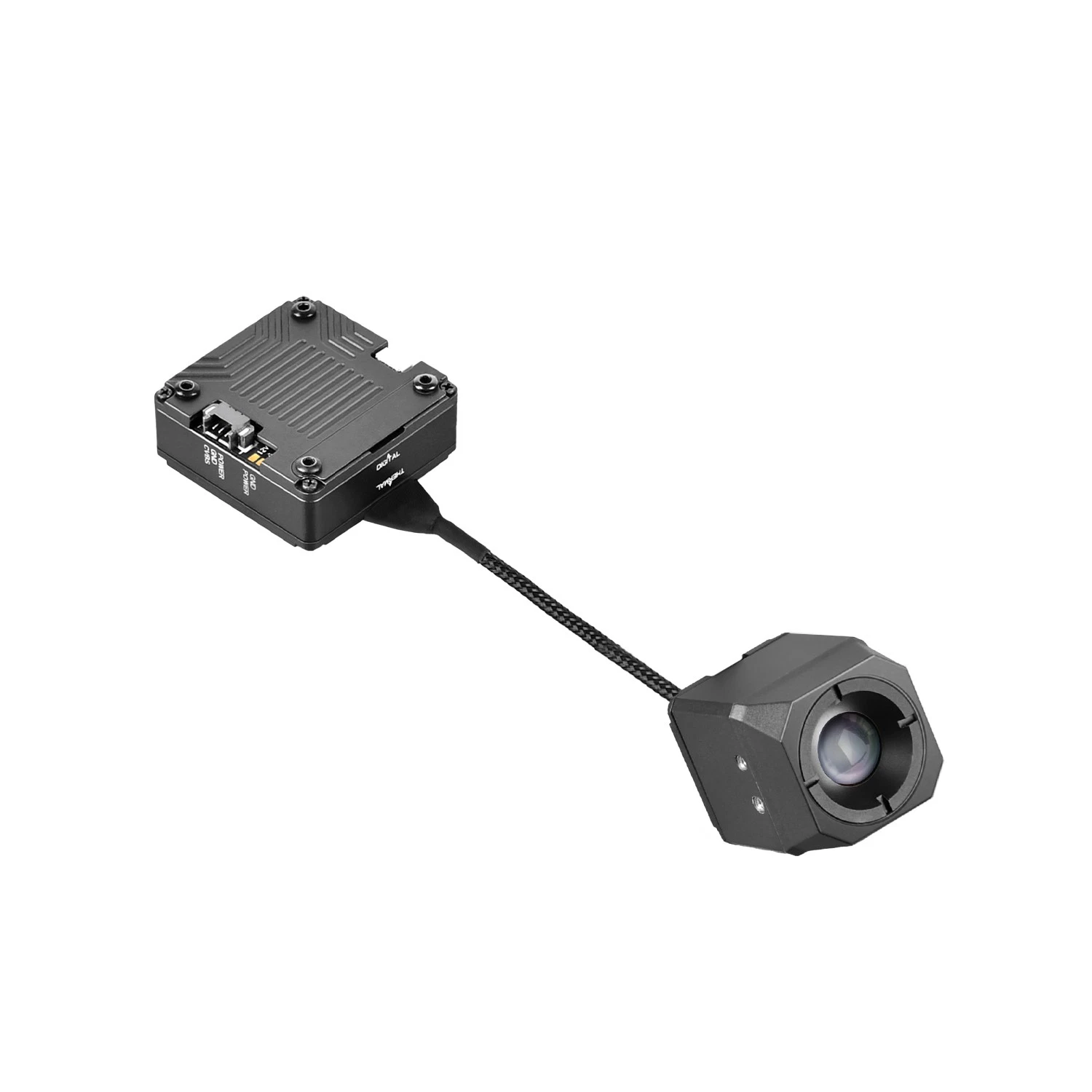

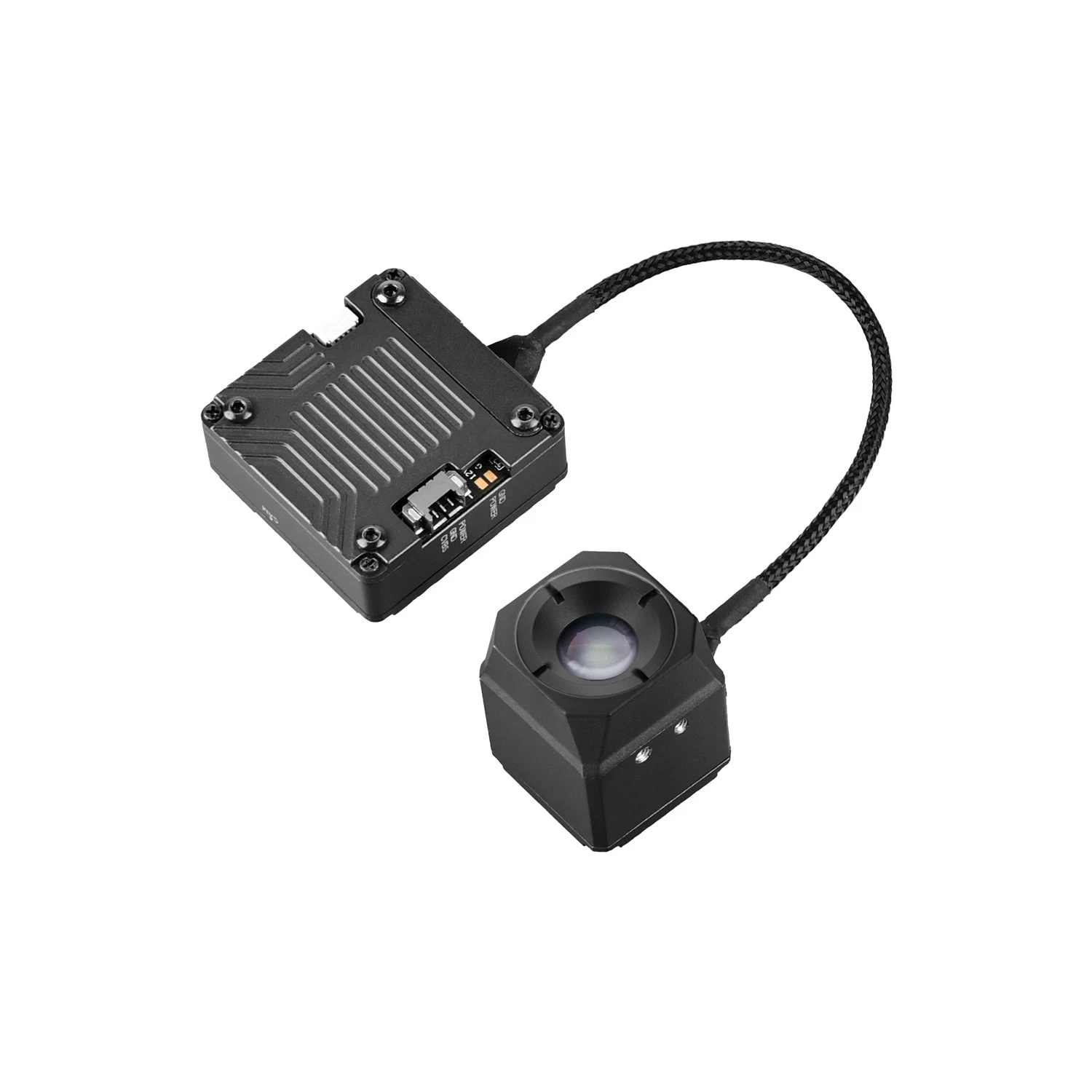

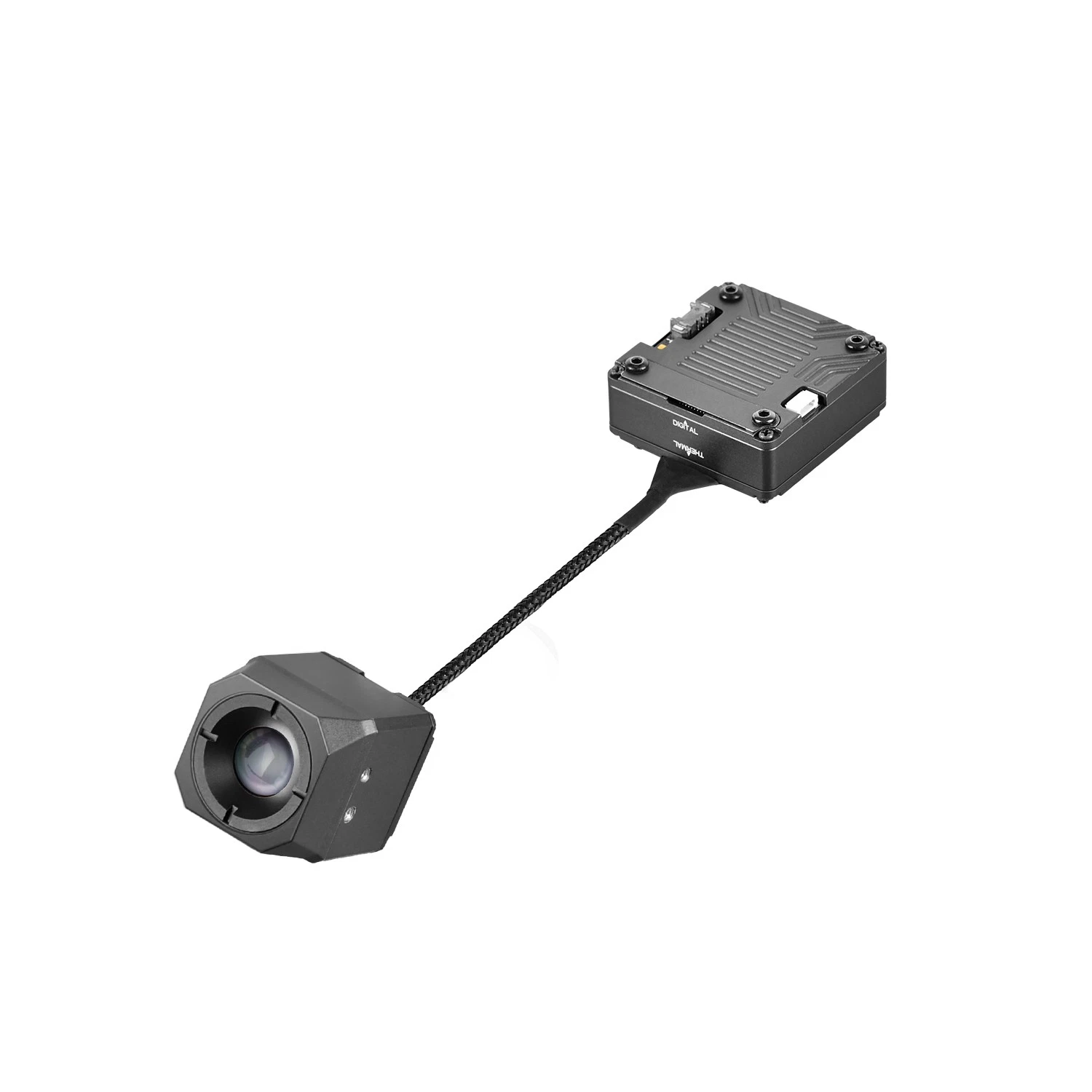

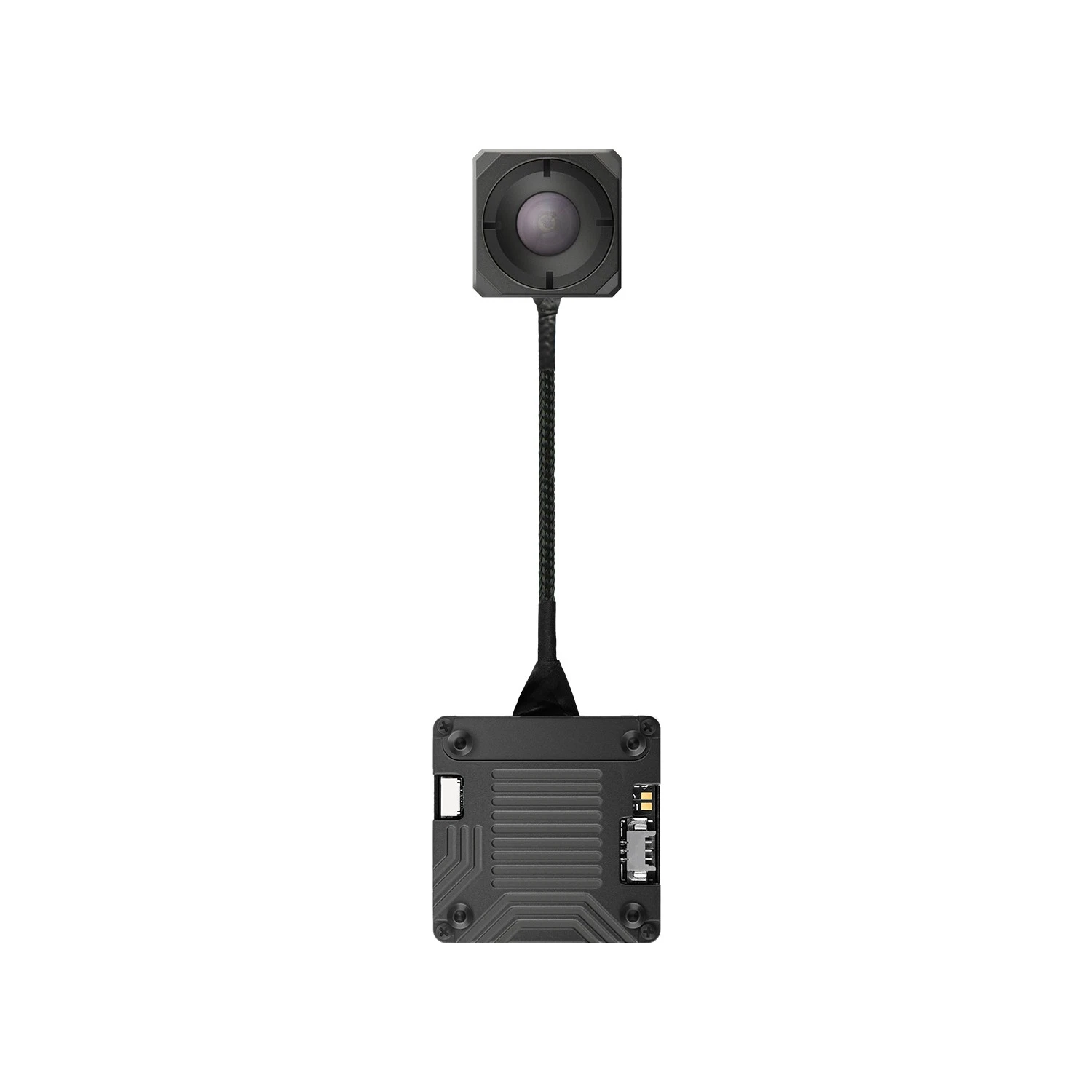

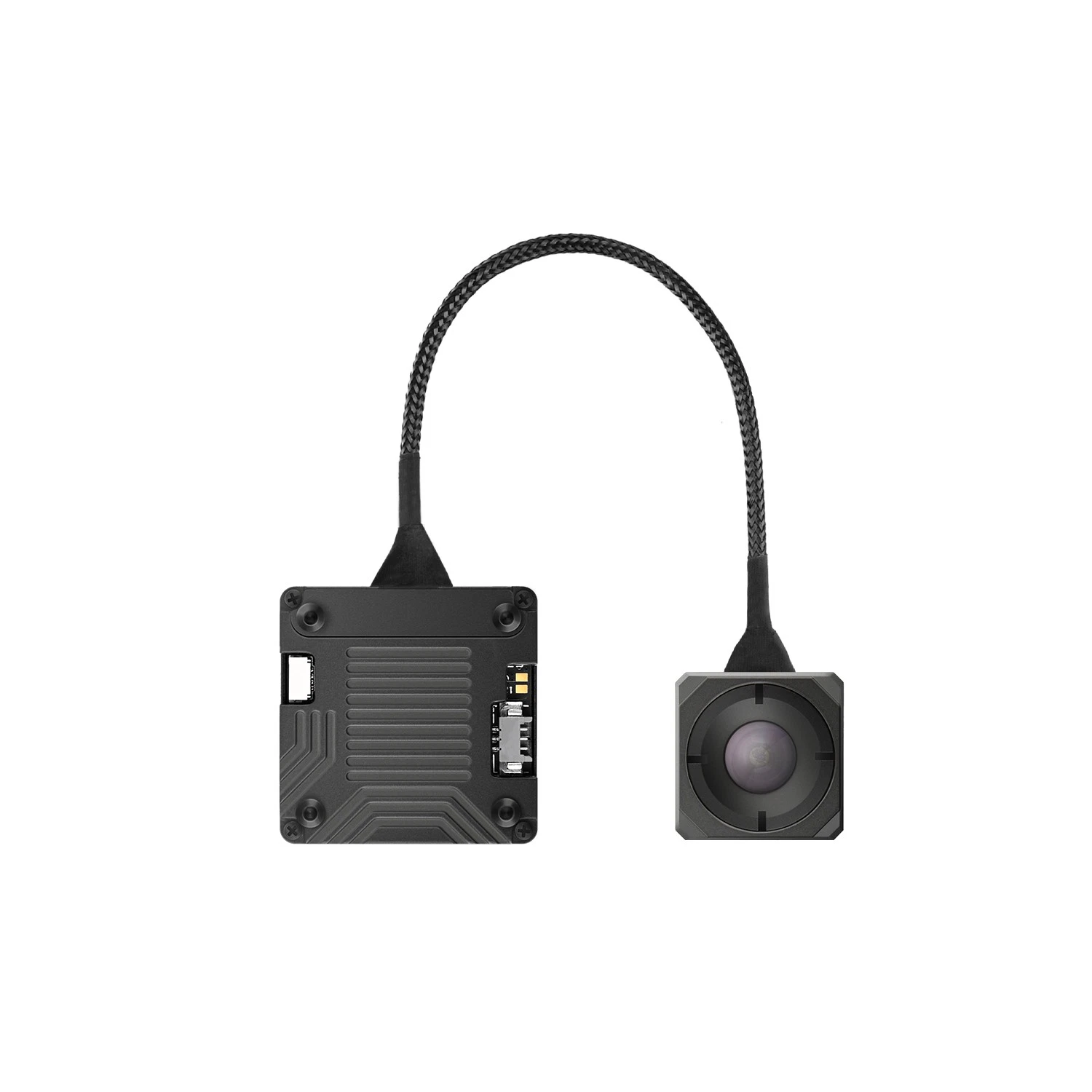

TIC384FM Thermal Camera 384x288@12μm 50fps MIPI/CVBS 48° FOV Drone Module

TIC384FM Thermal Camera 384x288@12μm 50fps MIPI/CVBS 48° FOV Drone Module - Image 2

TIC384FM Thermal Camera 384x288@12μm 50fps MIPI/CVBS 48° FOV Drone Module - Image 3

TIC384FM Thermal Camera 384x288@12μm 50fps MIPI/CVBS 48° FOV Drone Module - Image 4

TIC384FM Thermal Camera 384x288@12μm 50fps MIPI/CVBS 48° FOV Drone Module - Image 5

TIC384FM Thermal Camera 384x288@12μm 50fps MIPI/CVBS 48° FOV Drone Module - Image 6

TIC384FM Thermal Camera 384x288@12μm 50fps MIPI/CVBS 48° FOV Drone Module - Image 7

TIC384FM Thermal Camera 384×288@12μm 50fps MIPI/CVBS 48° FOV Drone Module

$729.99

TIC384FM Thermal Imaging Camera | 384×288 | MIPI / CVBS | 48° FOV

SKU: TIC-384FM Categories: FPV PART, THERMAL CAM SERIES

Description
Reviews (0)

Key Features

High Resolution: 384×288 thermal image with 12μm pixel pitch
Uncooled Vanadium Oxide sensor core
Dual Output: MIPI-CSI & CVBS (PAL) interface
Wide Lens FOV: 48° Horizontal, 34° Vertical, 59° Diagonal
Low NETD: ≤40mK @ F1.0 / 25℃
Ultra-low power consumption: <1.5W
Fast response: ~20ms latency
Compact and lightweight: Ideal for drones, robotics, inspection systems
