HS-X10M FPV Drone | 3.5KG Payload | 165KM/H Speed | 10KM+ Range | Carbon Fiber

HS-X10M Heavy-Lift FPV Drone | 6KG MTOW | 165km/h Max Speed | GPS Optional

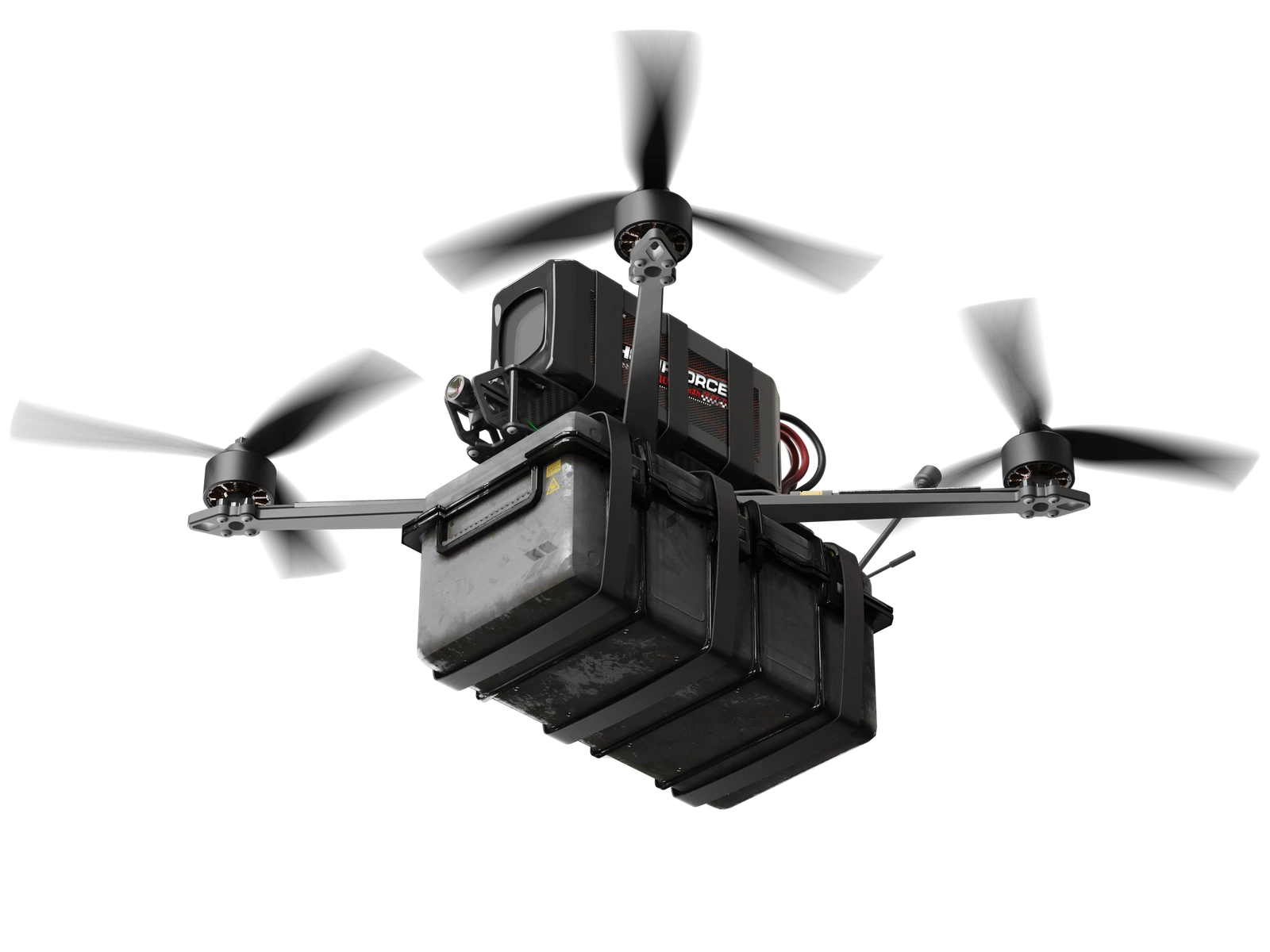

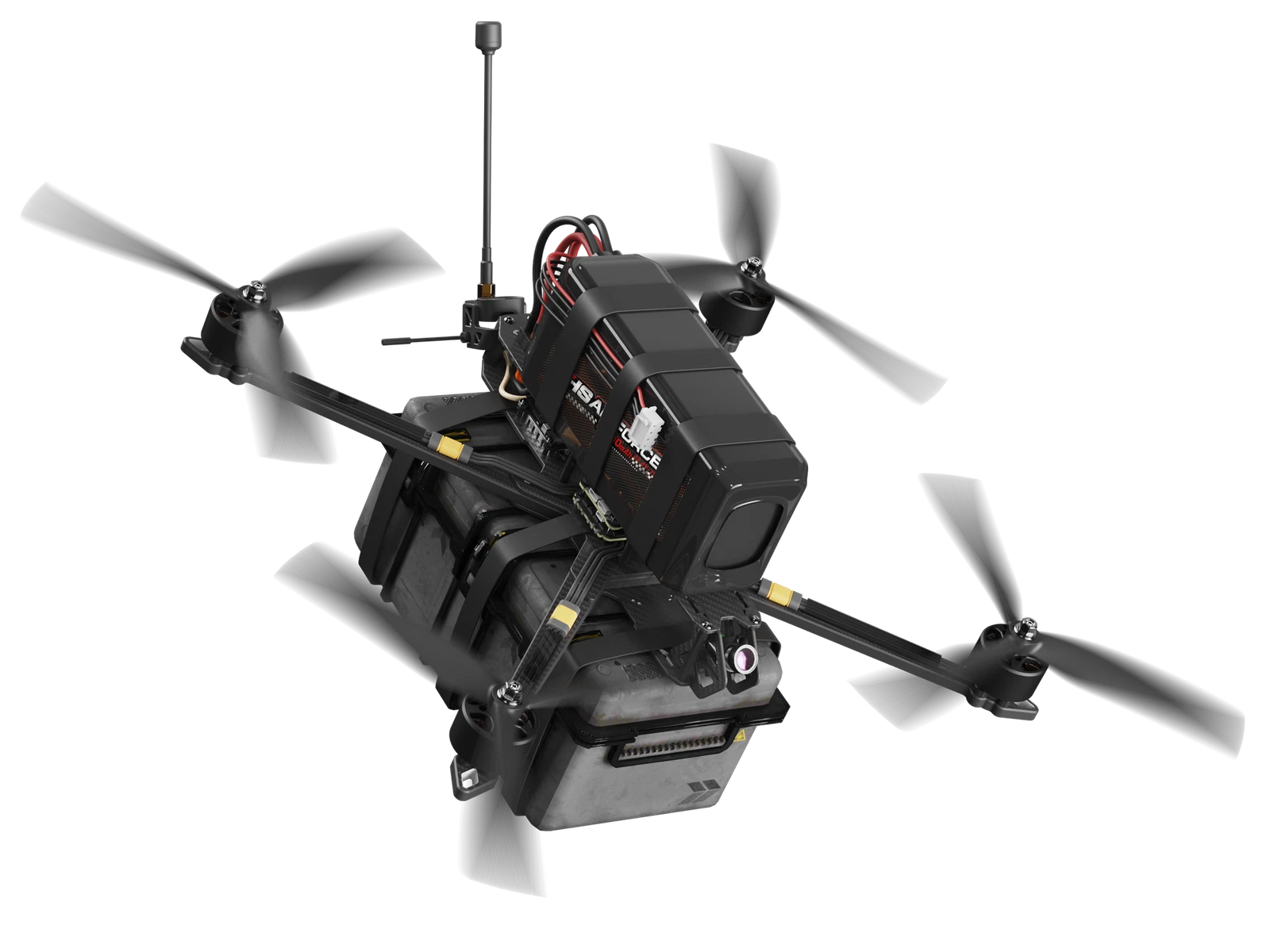

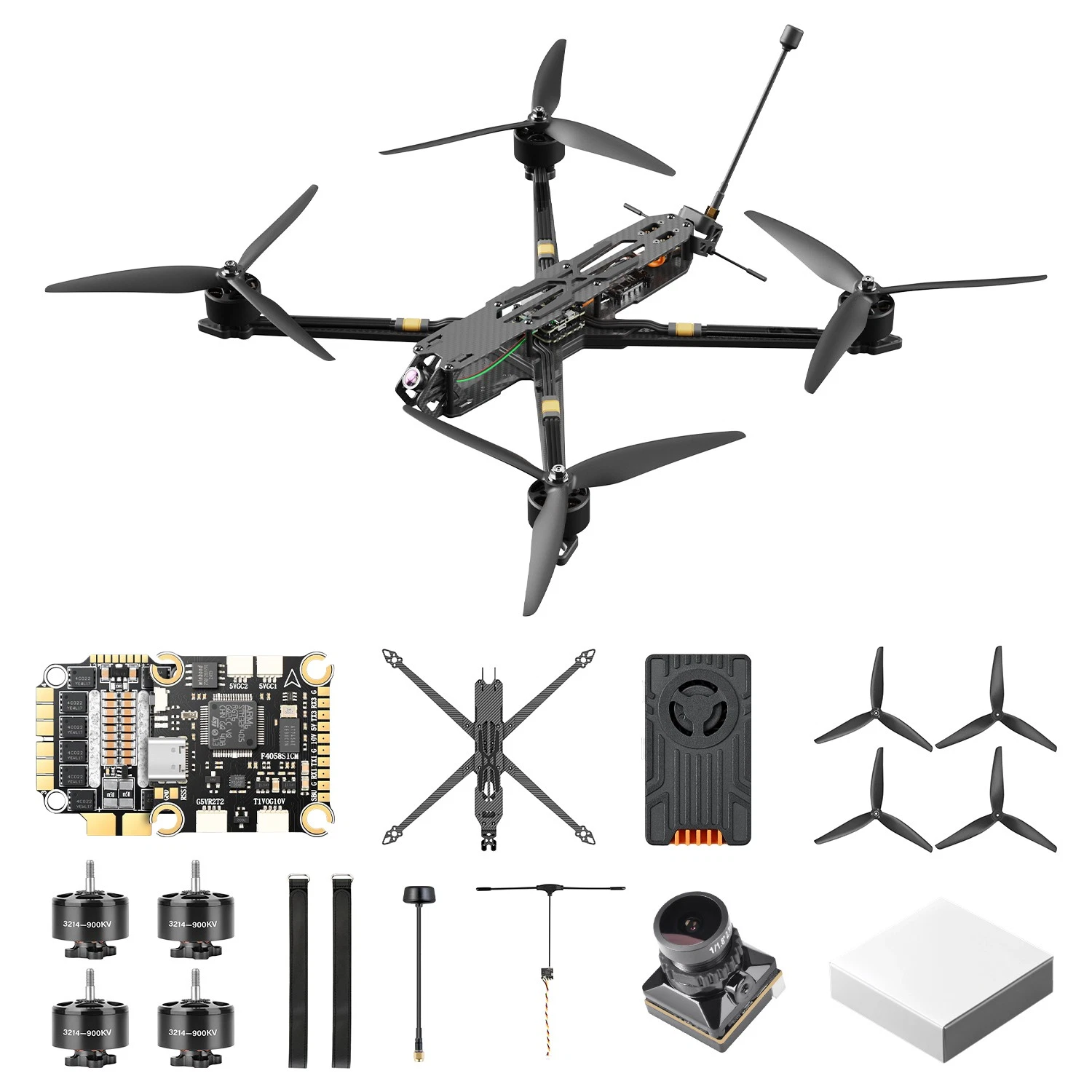

The HS-X10M is a high-performance FPV drone designed for professional payload delivery, mapping, and freestyle racing applications. Featuring a T300 carbon fiber frame and a 6kg maximum takeoff weight, it supports up to 3.5kg payload, making it ideal for carrying sensors, cameras, or custom equipment.

Equipped with powerful 1930W motors and 250mm 3-blade propellers, it delivers lightning-fast speeds up to 165km/h and superior stability. The drone supports ELRS 915MHz receiver with a control range over 10km, and the 5.8GHz VTX offers multiple power options up to 3W for reliable video transmission.

With a hover time over 30 minutes (no load) and 10 minutes under full payload, the HS-X10M is optimized for extended missions. It integrates Betaflight firmware, dual-camera switch, Type-C port, DJI FPV compatibility, and full telemetry-ready ESCs with AM32 firmware.

Key Features:

• Max Payload: 3.5kg | MTOW: 6kg

• Max Speed: 165km/h | Ascend: 15m/s | Descend: 20m/s

• Optional GPS with ±0.5m vertical hovering accuracy

• Modular design with customizable receiver/VTX frequencies

• High-temp motor construction (900kv / 72.27A max current)

• Supports 3S–8S LiPo battery input

Whether for long-range FPV flights or industrial applications, the HS-X10M offers unmatched performance and reliability in a compact, carbon fiber build.

Note: GPS module and camera are optional. Battery not included.

2. Item Specifics / Detail Section

• Model: HS-X10M

• Drone Type: FPV Racing / Industrial

• Empty Weight: 1055g (without battery)

• Rated Payload: 3kg

• Max Payload: 3.5kg

• Max Takeoff Weight (MTOW): 6kg

• Flight Time: 10min (with payload), >30min (no-load)

• Flight Speed: Up to 165km/h

• Range: 10km+

• Tilt Angle: 360°

• Max Altitude: 5000m

• Wind Resistance: Level 6

• Operating Voltage: 6S LiPo / LiHv

• Material: T300 Carbon Fiber Frame

• Wheelbase: 438mm

• Camera Resolution: 1500TVL

• Control Frequency: ELRS 915MHz (customizable)

• VTX Output: 25mW to 3W

• GPS Module: Optional

• Firmware: Betaflight + AM32

• ESC Current: 60A Continuous / 65A Peak

• Temperature Range: -10°C to 40°C
