HS-X07M Carbon Fiber FPV Drone 2.5kg Load 325mm Wheelbase 6S Racing Quad

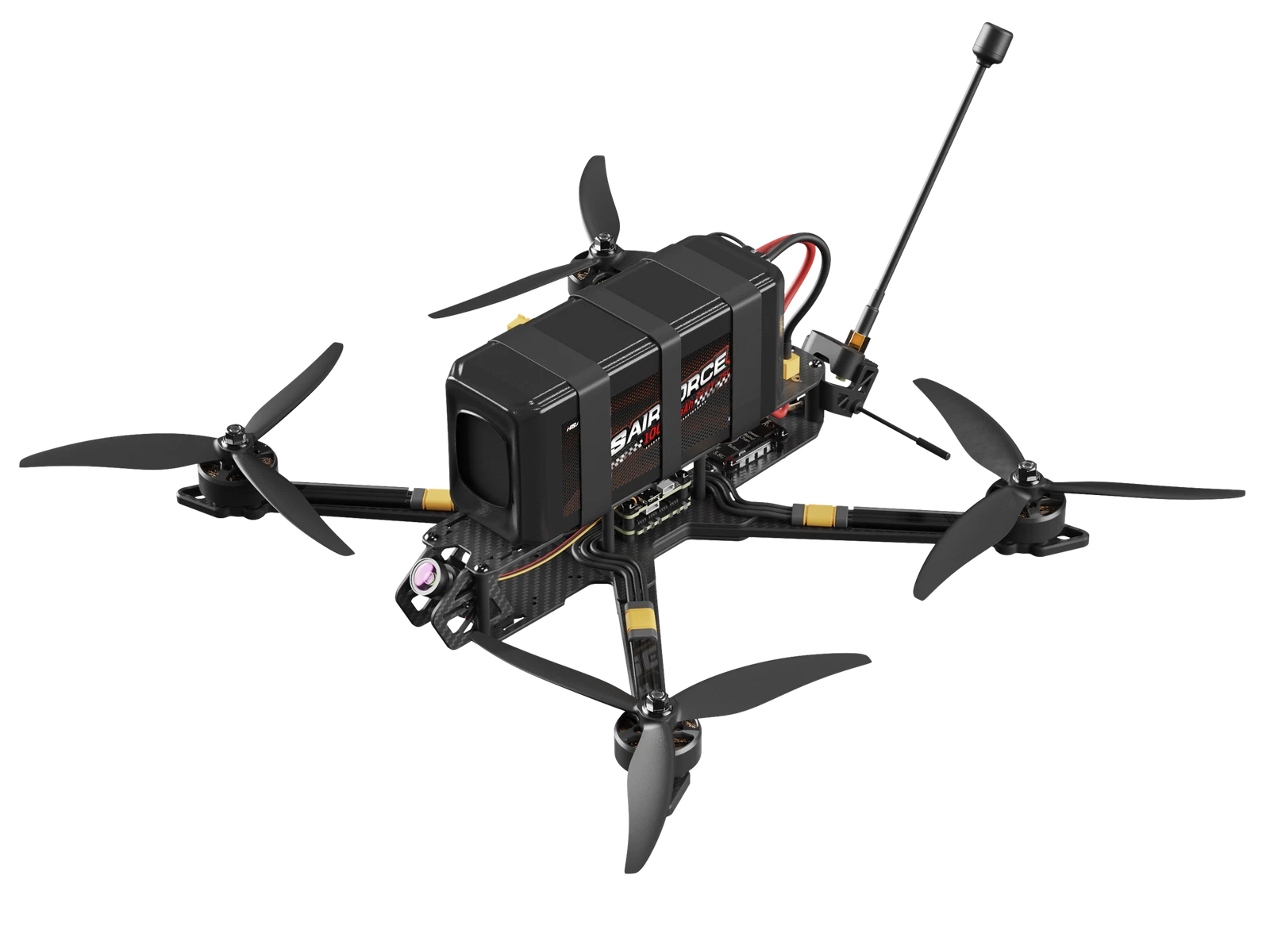

HS-X07M FPV Racing Drone – Professional Performance, Extreme Agility

Take your FPV experience to new heights with the HS-X07M, a high-performance racing drone engineered for speed, stability, and endurance. Built with a lightweight T300 carbon fiber frame and powered by a robust 6S system, this drone delivers outstanding flight dynamics and exceptional reliability.

Flight Performance:

• Achieve speeds up to 150km/h with 12m/s ascend and 20m/s descend capability.

• Impressive 10km+ control range ensures maximum freedom.

• Rated to carry 2kg payload with a maximum takeoff weight of 4kg.

Powerful System Integration:

• Equipped with 4x1350KV motors delivering 1114W of thrust each.

• Advanced F405 flight controller running Betaflight firmware, supporting DJI, dual-camera switch, and blackbox.

• Smooth power delivery through 60A ESCs with AM32 firmware.

Video and Transmission:

• Comes with a 1500TVL FPV camera with 1/3″ sensor and ultra-wide 135° FOV.

• Built-in 3W 5.8GHz VTX supports 25mW to 3W output across 72 channels, paired with a 14cm RHCP antenna.

• Receiver supports ELRS 915MHz for low-latency, long-range control (custom bands available).

Durability and Design:

• Reinforced with 12.9 grade alloy bolts and 6061 aluminum standoffs.

• Fully modular layout for easy maintenance and customization.

• Optional GPS module allows accurate RTH and hover positioning (±1m accuracy in GPS mode).

Power Supply:

• Recommended with 8000mAh 6S LiPo battery (75C) for over 25 minutes of hover (no load), or 11 minutes under 2kg payload.

Whether you’re flying freestyle, racing, or performing aerial tests, the HS-X07M provides the precision, power, and endurance professionals demand.

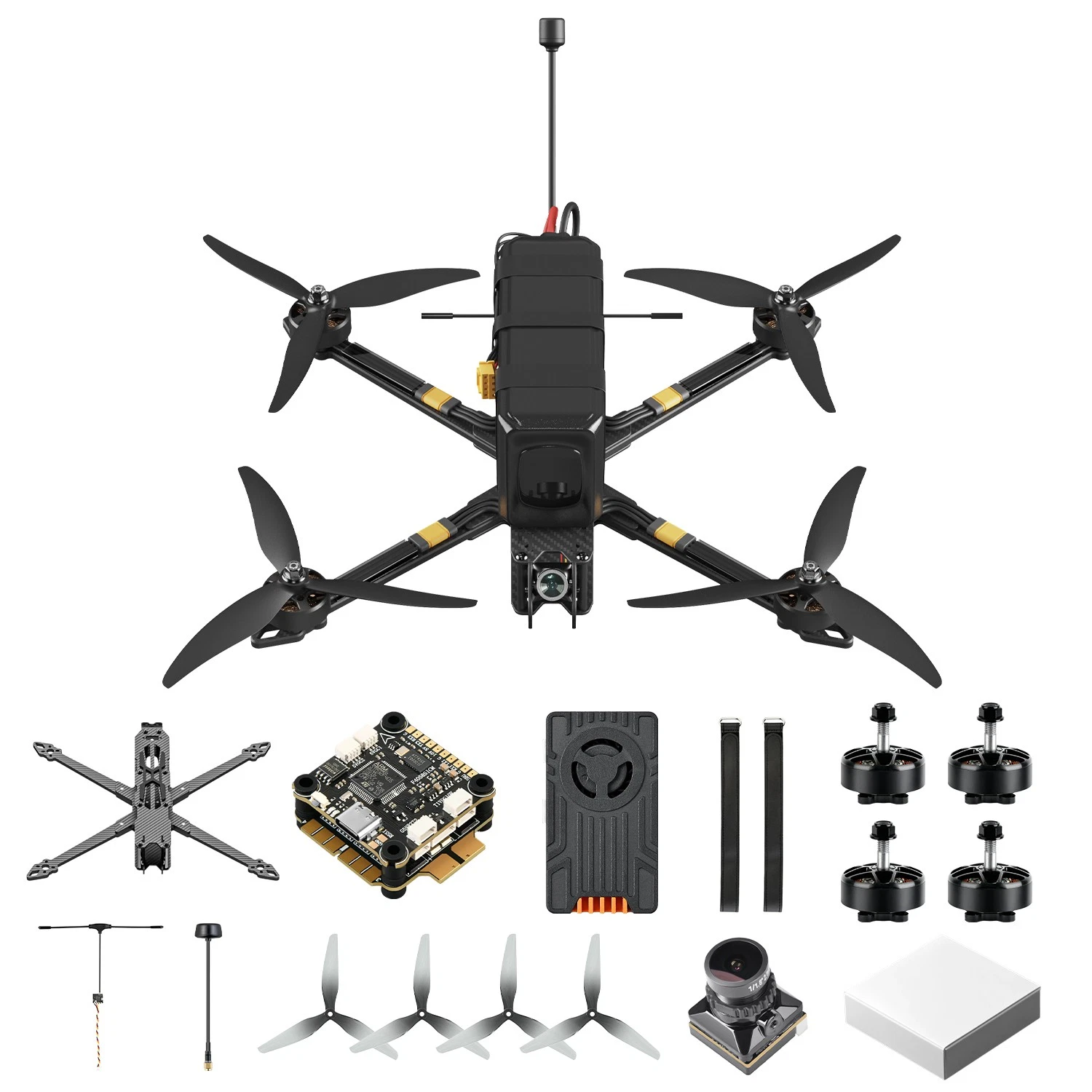

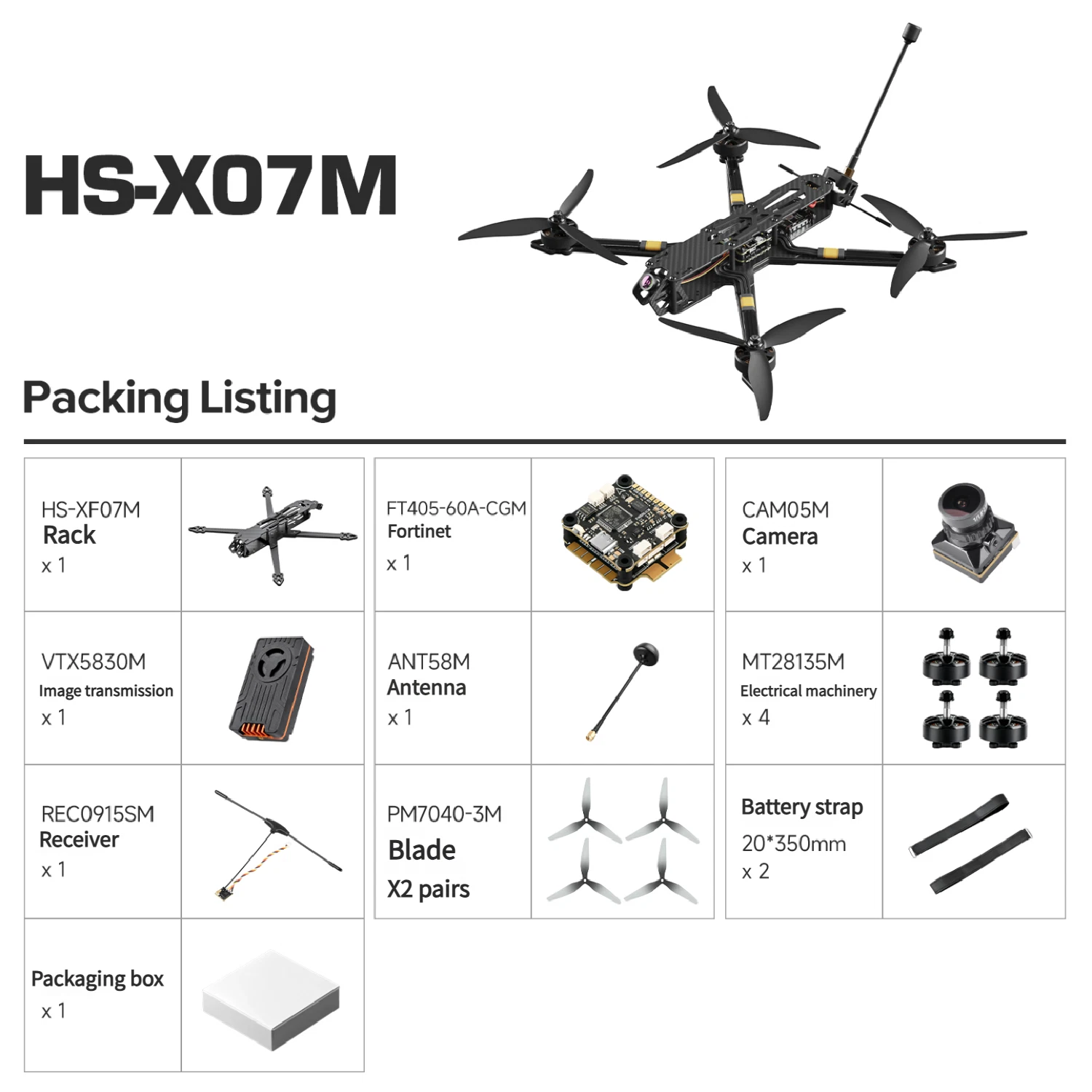

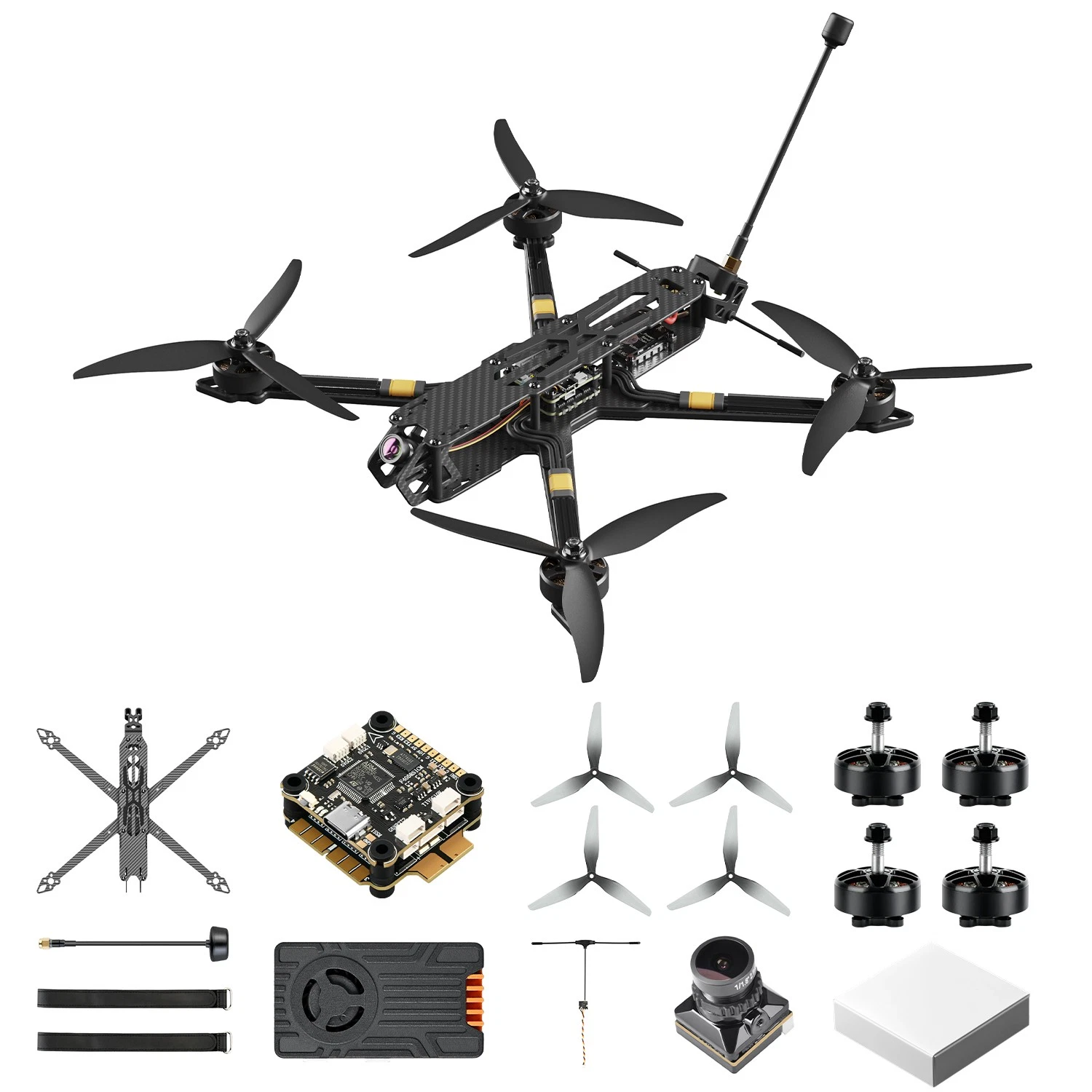

Package Includes:

• 1x HS-X07M FPV Drone (PNP, GPS optional)

• 4x 1350KV Brushless Motors

• 4x 7040-3 Propellers (CW/CCW)

• 1x 1500TVL FPV Camera

• 1x 5.8GHz 3W VTX

• 1x ELRS 915MHz Receiver

• 1x MMCX-SMA Adapter Cable

• 1x 5.8GHz Antenna

Note: Battery and goggles not included. GPS module optional.

📋 Item Specifics / Key Features:

• Model: HS-X07M

• Empty Weight: 560g (excluding battery)

• Max Takeoff Weight (MTOW): 4kg

• Rated Payload: 2kg

• Max Payload: 2.5kg

• Flight Time: 25min (no load), 11min (rated load)

• Max Speed: 150km/h

• Control Range: Over 10km

• Operating Voltage: 6S LiPo / 6S LiHv

• Frame Material: T300 Carbon Fiber

• Wind Resistance: Level 6

• Max Takeoff Altitude: 5000m

• Motor Power: 1114W | 1350KV

• ESC Protocol: DShot 150/300/600

• Flight Controller: STM32F405 with Betaflight

• Camera: 1500TVL, 1/3” sensor, 135° FOV

• VTX: 5.8GHz, up to 3W, 72 Channels

• Receiver: ELRS 915MHz

• Propellers: 3-blade, 180mm diameter

• Battery Recommended: 8000mAh 6S 75C LiPo (1pc)
