HS-P136M 15kg 6-Rotor FPV Drone 10KM+ ELRS 5.8GHz 8.5kg Payload System

⚙️ Key Features:

• High Payload Capacity: Supports up to 9.5kg max payload, ideal for industrial equipment, delivery modules, or sensors.

• Extended Flight Range: Over 10km remote control distance, using ELRS 915MHz protocol.

• Fast and Agile: Achieve speeds up to 140km/h with a 360° max tilt angle, perfect for swift deployment.

• Efficient Hover Times: 12 min under rated load; more than 30 min without payload.

• Weather-Ready: Withstands wind up to level 6, operates in temperatures from -10°C to 40°C.

• Powerful Motor System: 6 high-performance 440KV motors (1569W each) for stable thrust.

• Advanced Electronics:

  • Flight Controller: STM32F405 + ICM42688-P Gyro, Betaflight firmware.

  • ESC: 80A continuous current, telemetry supported.

  • PDB: 100A with built-in BECs and ammeter.

• Camera & Video Transmission:

  • 1500TVL low-light camera with PAL/NTSC support.

  • VTX: Up to 3W, 72 channels, 5.8GHz (customizable).

  • Antenna: 3dB gain with SWR ＜1.5, RHCP polarization.

• Optional GPS: Accurate return-to-home and hovering capability with optional module.

🔋 Recommended Battery (Not Included):

• Type: LiPo 8S1P

• Capacity: 7500mAh

• Discharge Rate: 70C

• Quantity: 2 packs suggested

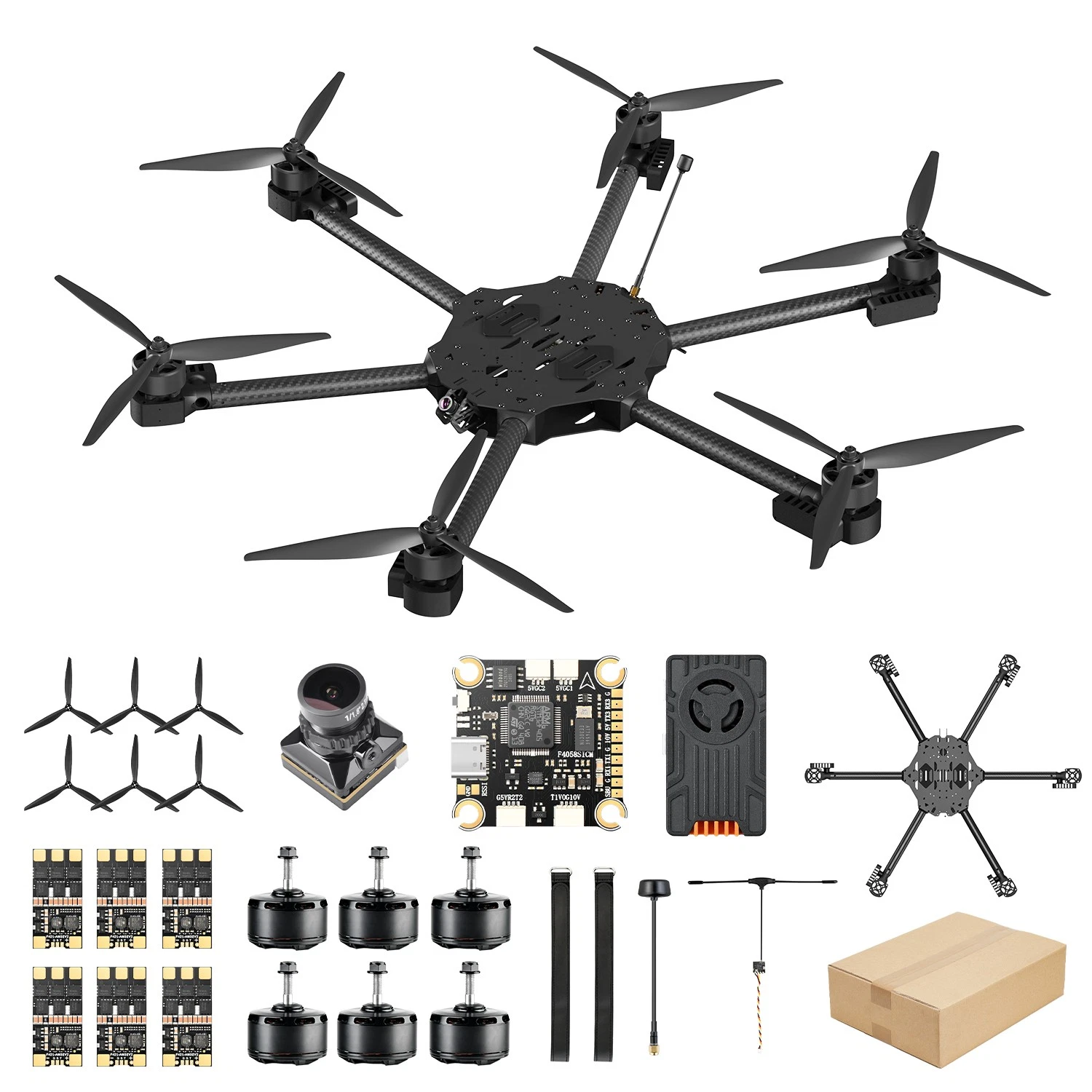

📦 Package Includes:

• 1x HS-P136M Drone Frame with Motors

• 6x ESC (80A)

• 1x PDB

• 6x Propellers (3CW + 3CCW)

• 1x Flight Controller (pre-installed)

• 1x VTX module (5.8GHz 3W)

• 1x ELRS Receiver (915MHz)

• 1x FPV Camera (1500TVL)

• 1x VTX Antenna

• 1x Adapter Cable

• Screws, hardware & standard mounting accessories
  (Battery & GPS module not included unless otherwise stated)

🛠️ Applications:

• Long-distance FPV flying

• Aerial surveying and mapping

• Payload delivery systems

• Industrial inspections

• Custom development projects
