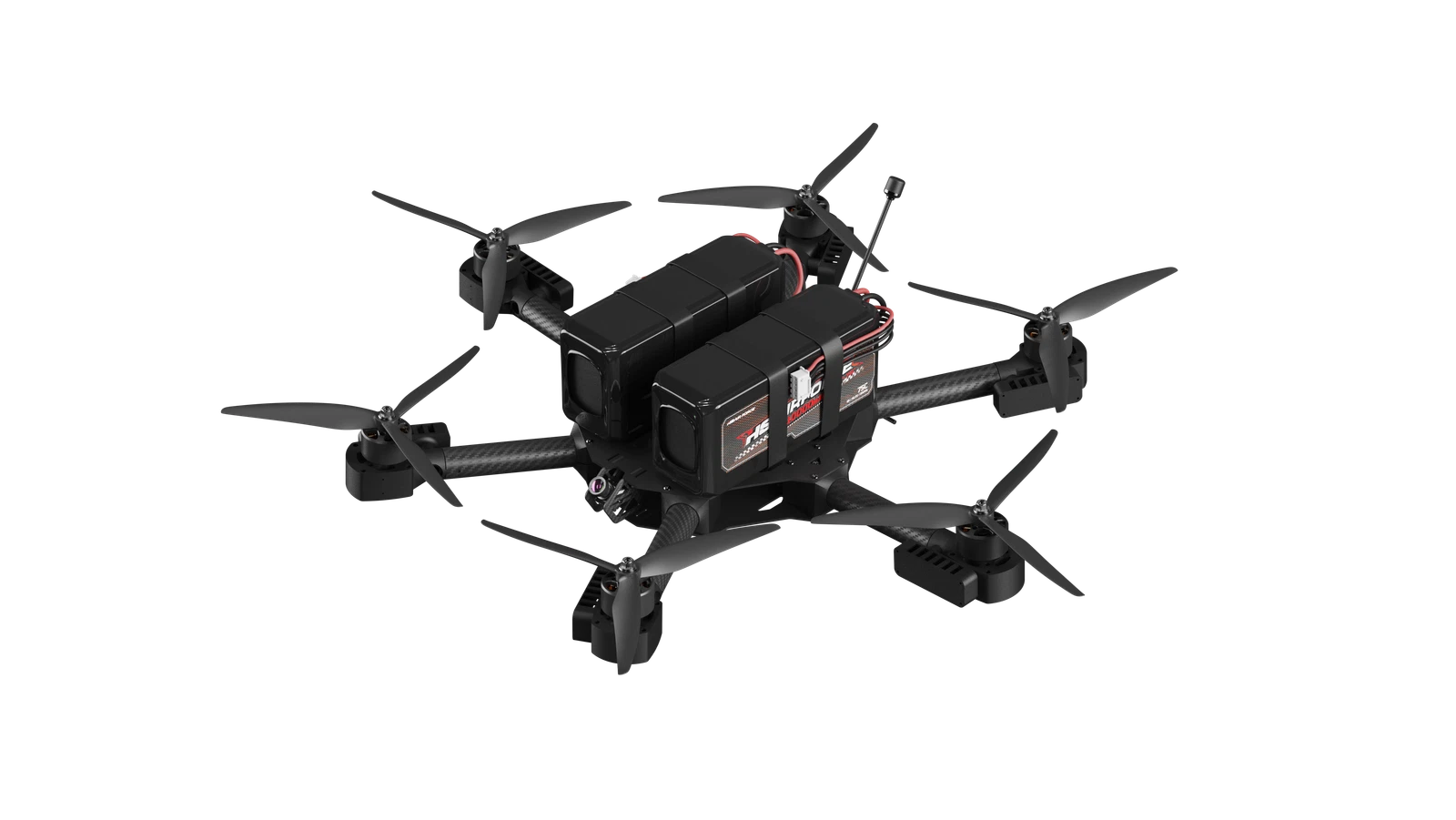

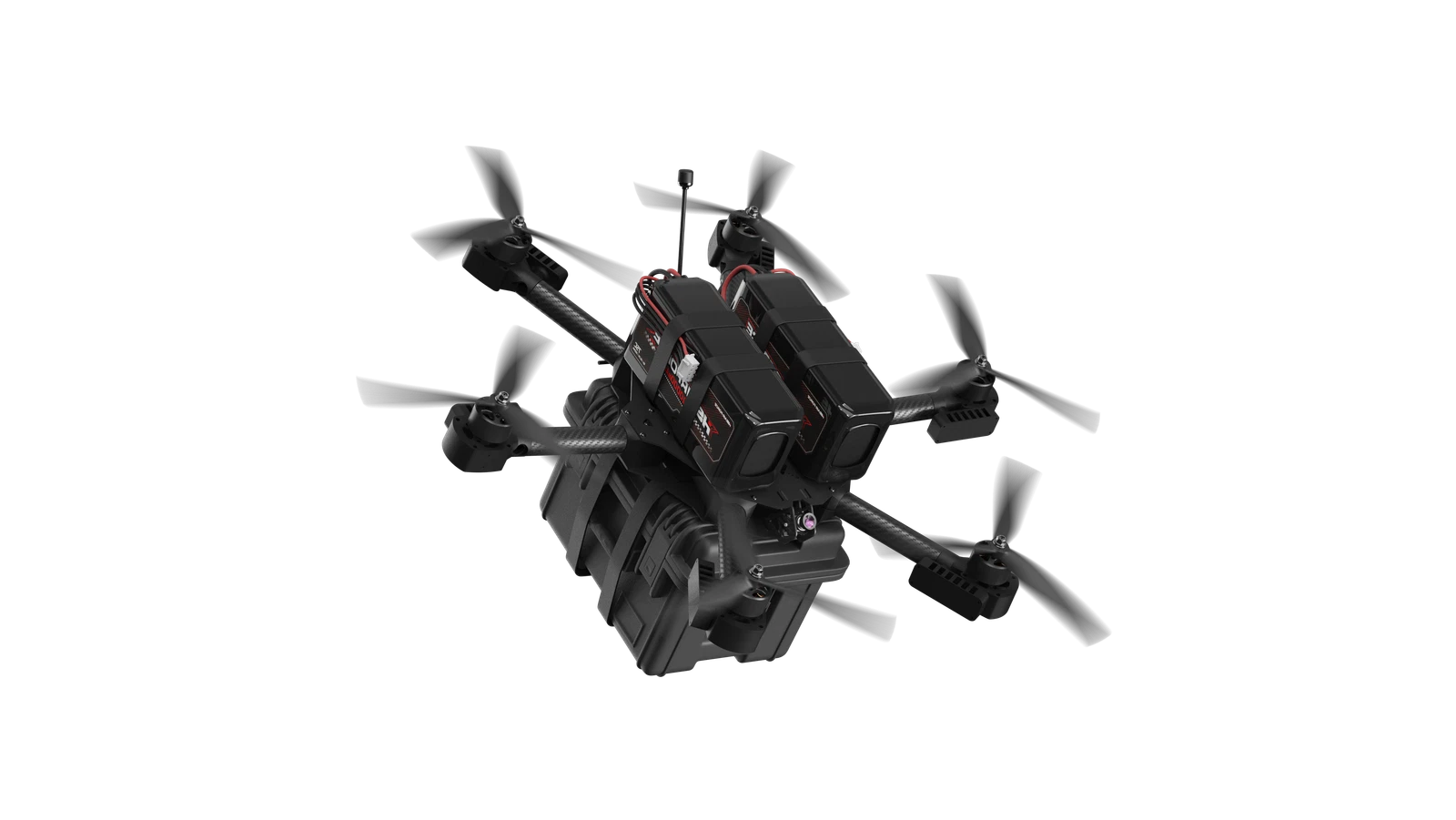

HS-P106M Heavy Lift FPV Drone – High-Speed, Long-Range, Industrial-Grade Hexacopter
Take your aerial operations to the next level with the HS-P106M, a professional-grade FPV drone designed for heavy payloads, long-range communication, and ultra-fast flight performance. Whether you’re engaged in cargo delivery, long-range inspection, or specialized aerial tasks, this hexacopter delivers powerful performance and versatility.
🔧 Key Features:
-
High Payload Capacity:

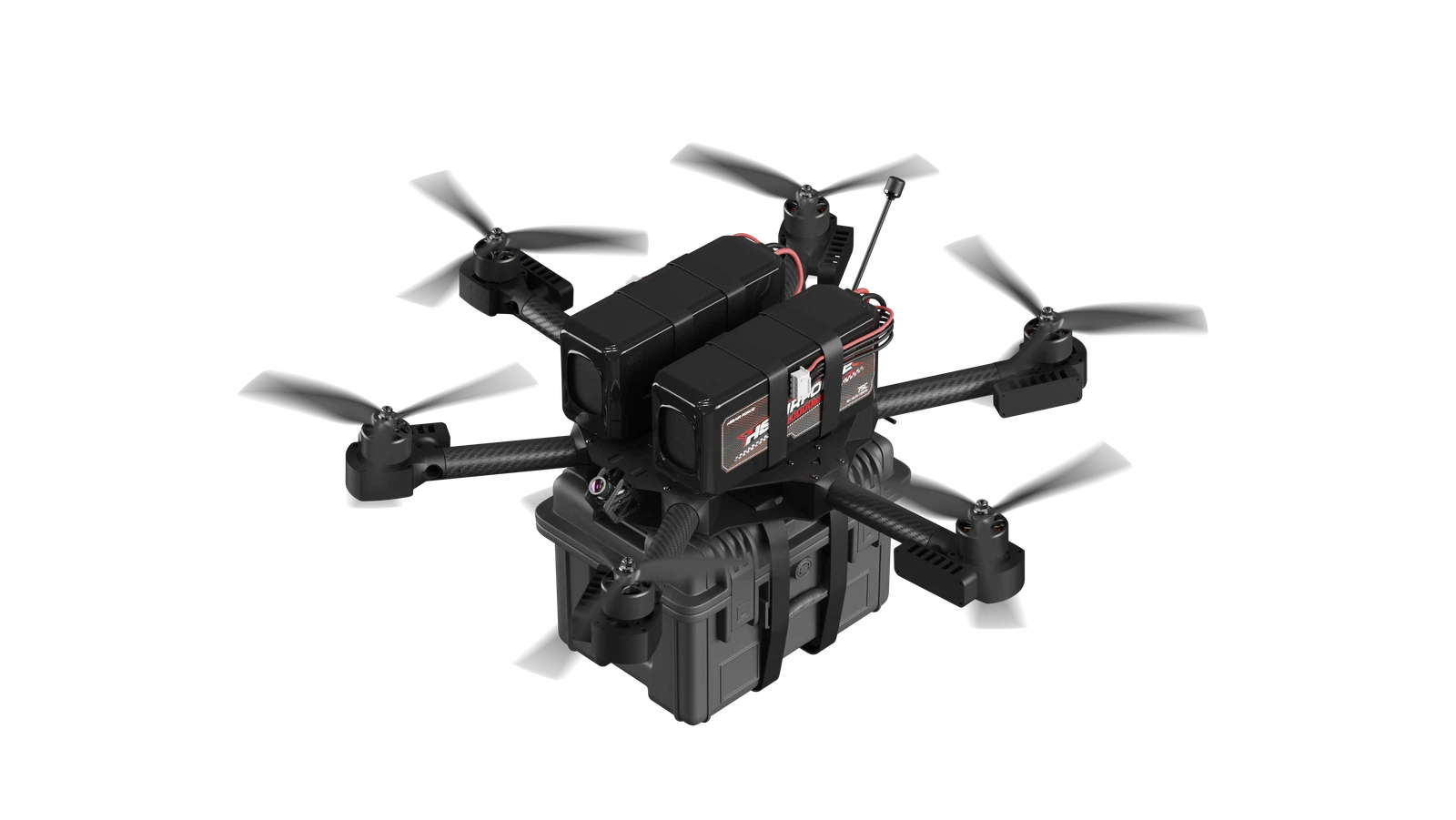

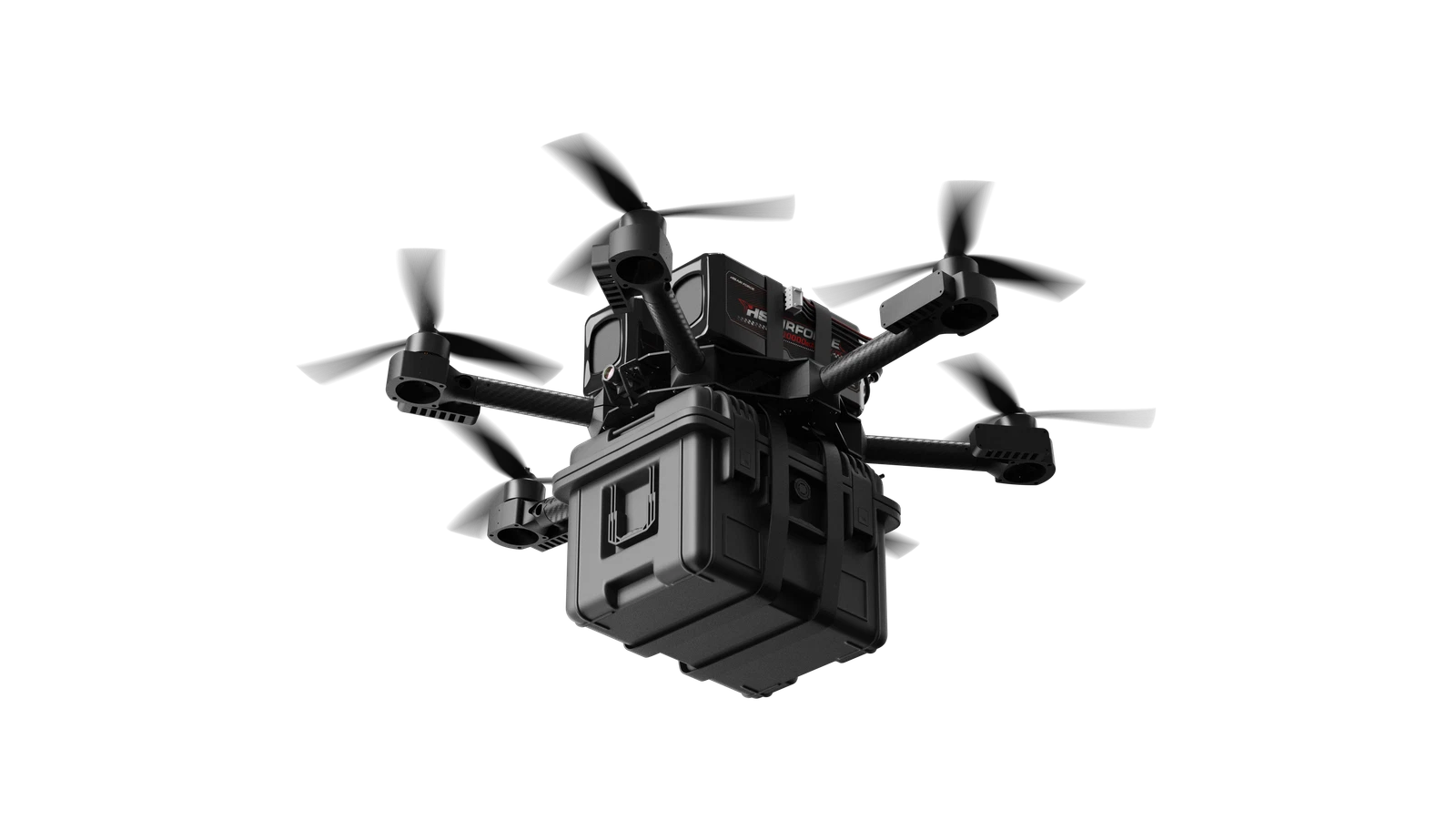

Carry up to 5kg payload with a max takeoff weight of 8.5kg – ideal for industrial applications. -
High-Speed Performance:
Reaches a top speed of 145km/h, with a max ascent speed of 15m/s and descent at 20m/s. -
Extended Flight Time:
Enjoy up to 30 minutes of no-load hovering or 10 minutes under full load. -
Ultra-Long Range:
Supports 10km+ remote control distance, with ELRS 915MHz and 5.8GHz VTX (3W output). -
Advanced Flight Controller:
Powered by STM32F405, featuring 16MB black box, barometer, dual-camera switch, and DJI interface – fully compatible with BetaFlight. -
Powerful Motor System:
Equipped with 6 high-efficiency 1930W motors, 900KV, and 48SH NdFeB magnetic steel for superior power and reliability. -
Durable Carbon Fiber Frame:
Lightweight and rugged T300 carbon frame, reinforced with 12.9-grade alloy bolts and nylon/fiber injection parts. -
High-Definition FPV System:
1500TVL analog camera with WDR, 2.1mm lens, and 135° FOV for crystal-clear visibility. -
High-Performance VTX:
5.8GHz, 72 channels, up to 3W power output, supports IRC Tramp and OSD tuning.
🛠️ Optional GPS Module (Not Included):
Enable precise GPS hold and Return-to-Home with ±1m accuracy for vertical and horizontal positioning.

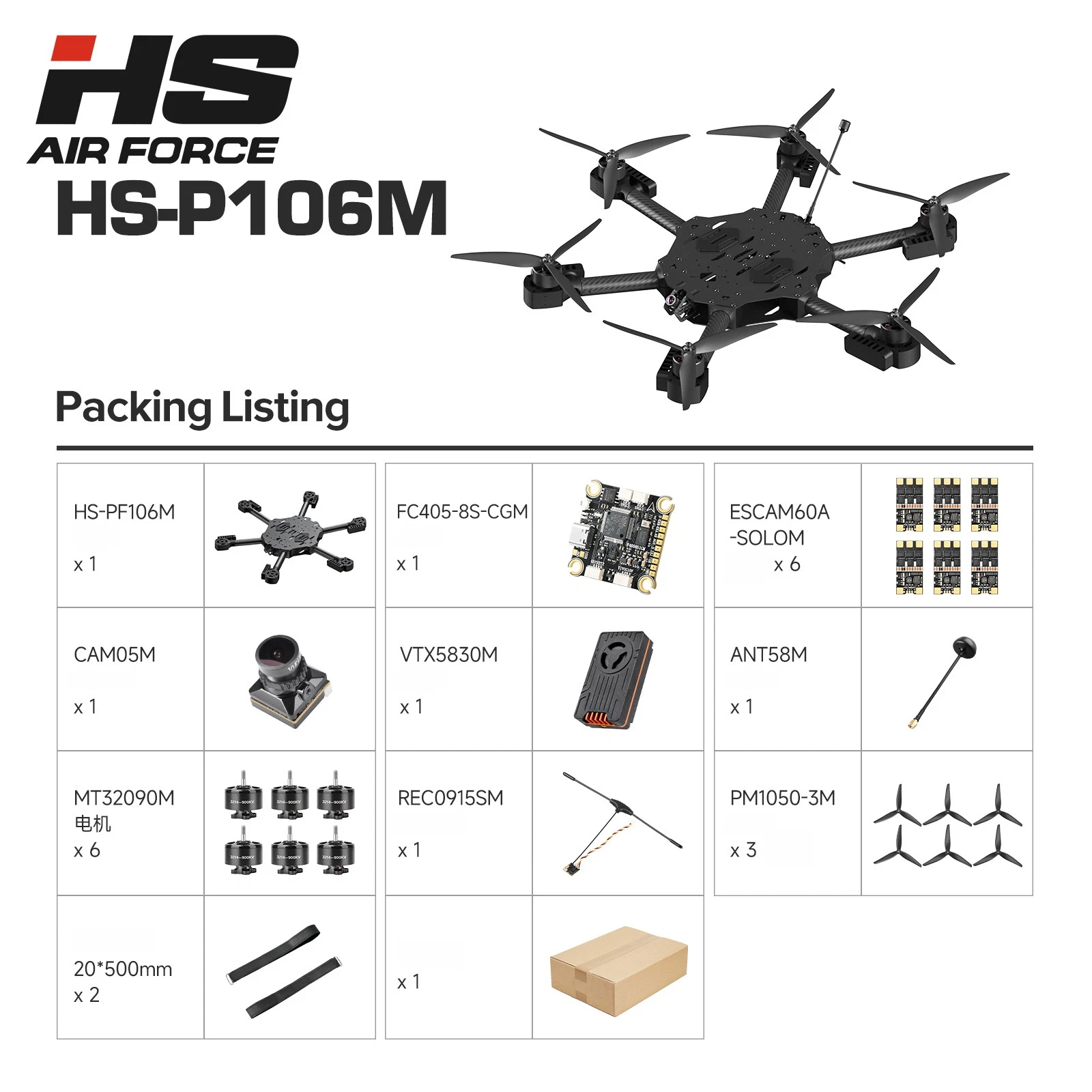

📦 Package Includes:
-
1x HS-P106M Drone Frame Kit (assembled)
-
6x Brushless Motors
-
6x 3-Blade Propellers (CW & CCW)
-
1x Flight Controller with BetaFlight Firmware
-
1x Split ESC (60A AM32, telemetry supported)
-
1x Power Distribution Board (100A BEC supported)
-
1x 1500TVL FPV Camera
-
1x 5.8GHz VTX (3W)
-
1x SMA Antenna + MMCX Adapter Cable
-
All Screws, Mounts, and Connectors
Batteries, transmitter, and receiver not included unless otherwise specified.
⚠️ Note:
This drone is intended for advanced users familiar with FPV systems and open-source flight controllers. Proper setup, configuration, and safety precautions are required for optimal performance.
