🔍 Key Features:
- Powerful AT32F435RGT7 MCU
- Precision IMU: ICM-42688-P + SPL06 Barometer
- Built-in AT7456E OSD Chip
- Onboard 16MB Blackbox for flight data logging
- Compatible with DJI Air Unit
- Type-C USB interface for fast and reliable connection
- Supports I2C, WS2812 LED, buzzer, and compass
- Compact size and light weight: 36x36mm, 8.5g
📊 Technical Specifications:

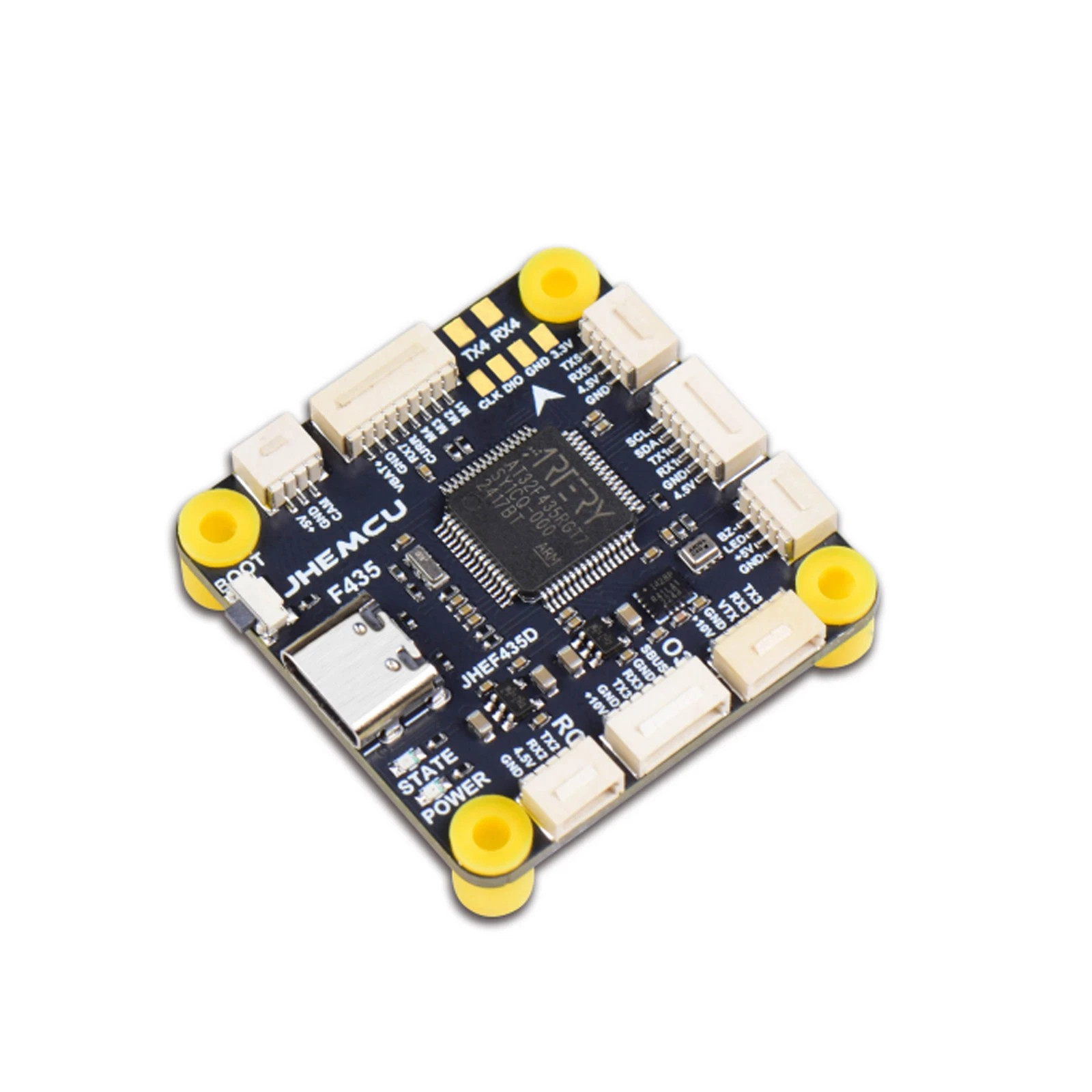

| Model | FC435-6S-GCJ |
|---|---|
| MCU | AT32F435RGT7 |
| IMU | ICM-42688-P |
| Barometer | SPL06 |
| OSD | AT7456E |
| Black Box | Onboard 16MB |
| Bluetooth | Not supported |
| DJI Air Unit Connector | Supported |
| Voltage Input | 3S–6S Li-ion battery |
| BEC Output | 5V @ 3A, 10V @ 2A |
| Firmware | Betaflight compatible |
| Mounting | 30.5×30.5mm |
| Size | 36x36mm |
| Weight | 8.5g |
📡 UART Configuration:
- UART1: GPS
- UART2: Receiver
- UART3: VTX (Video Transmitter)
- UART5: Custom use
- UART4/6/8: Reserved (not defined in firmware yet)
🔌 Ports & Functions:
- ESC Signal: M1–M4
- I2C: Supported (for compass)
- LED Pad: Supports WS2812
- Buzzer Pad: Supported
- BOOT Button: Yes
📦 Package Includes:
- 1x FC435-6S-GCJ Flight Controller
- 1x 8-Pin Plug Cable
- 3x 4-Pin Plug Cables
- 1x 3-Pin Plug Cable
- 1x 5-Pin to 6-Pin Cable
- 4x M3 Shock Absorbing Balls
✅ Applications:
Perfect for FPV racing drones, DIY quadcopters, DJI Air Unit integration, and Betaflight-based platforms.
